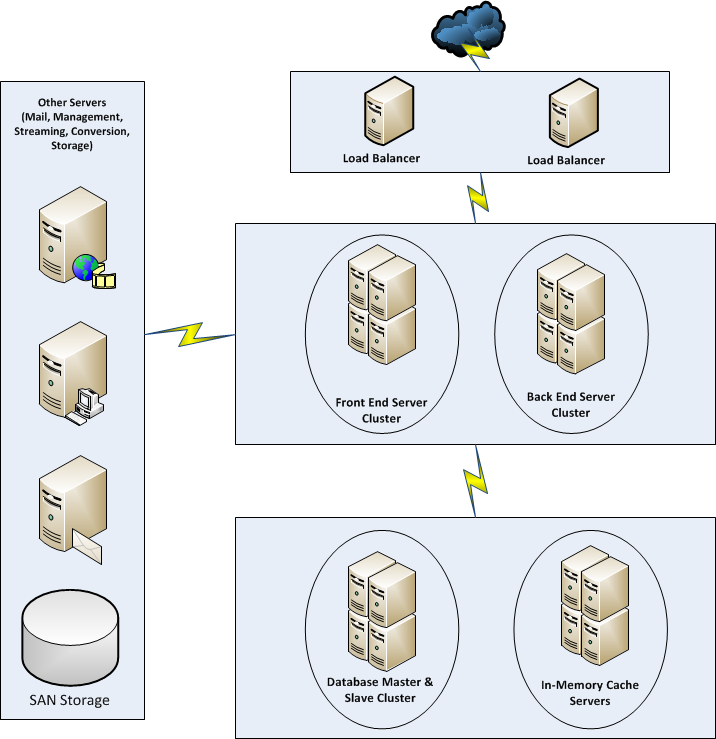

MangoApps setup can scale horizontally and vertically. We have tested the system with 1 Million simultaneous users (one person being followed by over 1M users). The diagram below describes the overall setup.
Security:
A wide range of options are available to address security needs of organizations from healthcare to government. |
- Private cloud and on-premise deployment option
- SAS-70, Type 2 data center
- Safe-Harbor compliant
- All data is encrypted during transit (256-bit SSL)
- At rest encryption of stored data
- Granular, application level, security focused configurations. Learn more
- Fully automated configuration management
- Data retention, system backup and disaster recovery process and policy
- Active directory based user authentication
- Detailed user and system access logs
- Tools for intrusion detection
- Information access policy
- MangoApps has been tested and can pass security vulnerability scans and requirements (for example: QualysGuard)
- Employee background check
|
On-Premise Deployments:
Ultimate security for enterprise with behind-the-firewall deployments. |
- Industry-standard OVF 1.0 virtual machine (can be deployed on anything that supports the standard).
- On-demand, zero-downtime, software upgrades over a secure VPN link
- Number of required nodes/hardware depends on size and nature of the deployment. Contact us for recommended server setup guide
- Download The MangoApps Appliance Now
|
Private Cloud Deployments:
SAS-70, Type II certified, redundant datacenter |
- Two different, SAS-70, Type II certified datacenters
- High availability setup spread between the two datacenters to ensure 99.99% SLA
- Automated, zero-downtime, configuration and application upgrades
- Physical and Logical separation between customer data
- Regular security and systems audits
- Completely managed
- Contact us for additional details
|
Typical Hardware & OS:
MangoApps scales both horizontally and vertically. A typical hardware node has the following specifications: |
- Ubuntu 10.04 LTS
- 16+ GB RAM
- 100+ GB, fast, raided HD
- Quad core CPU
|
Required Ports: **
** If you have enabled email, active directory or other system integrations, ports configured for those services must also be open on your server so that our servers can reach them. |
- HTTP: 80
- HTTPS: 443
- XMPP: 5222 & 5223
- RTMP: 1935
|
| Technologies: MangoApps is built from the ground up using latest & greatest open technology stack (RoR, Java, Linux) to bring social software innovations to you faster & cheaper. |
- Ruby On Rails
- J2EE
- MySQL
- jQuery Javascript Framework
- Apache/Nginx
- Memcached/MemcacheDB
- HAProxy, Monit, Nagios, OpenVPN, Postfix and few other, high quality, open-source systems
|
Backups:
MangoApps private cloud customers can configure backup schedule from admin interface. In addition, all data is immediately exportable via secure download at any time XML format from the admin interface. |
- Regular, Scheduled backups
- One-time backups
- XML Format
|
Integrations:
Connect, share content, import data, and extend functionality through smart integrations with: |
- Active Directory
- SharePoint 2007 - 2010 and 40+ other content repositories
- Outlook 2007 - 2010
- Facebook
- Twitter
- 2-way email
- SAML + Google Apps Auth
- Lync/OCS 2-way integration (in lab)
- Exchange Calendar & Tasks integration (in lab)
- Deeper GoogleApps integration (in lab)
- Robust REST-based API sets for other system integrations
|
